Dish backing structure is built onto the strong ring
A Cantilever is installed onto the strong ring
Steel-loaded concrete is mixed for counterweighting
Counterweighting is installed for the dish

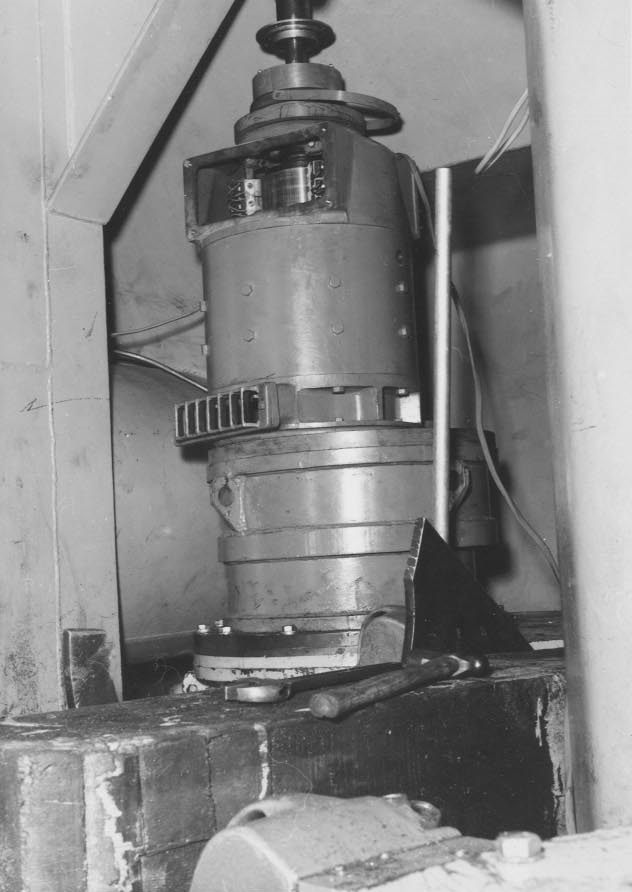

Part of the Azimuth drive motor

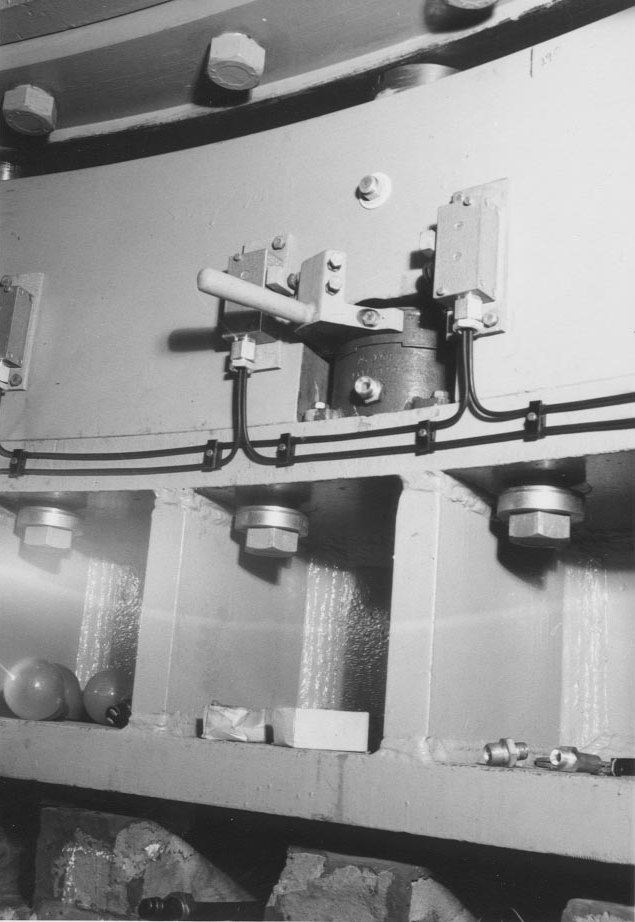

Close up of the Azimuth bearing
Feed transverse and focussing mechanism
Reflector panel showing mountings and expansion joints
Reflector panels are installed on the dish
Two legs ready for mounting on dish
Feed legs are lifted into position by crane
